We provide some PCB layout design by advanced tools and skillful designers, together with PCB fabrication and assembly.
Our one stop solution could be from PCB layout design to PCB fabrication and assembly. The service is under strong leadership of team management and quality control. We are specializing in developing and fabricating PCB single sided, double sided.
Protel PowerPCB Cadence Allegro Mentor Expedition Mentor Board station

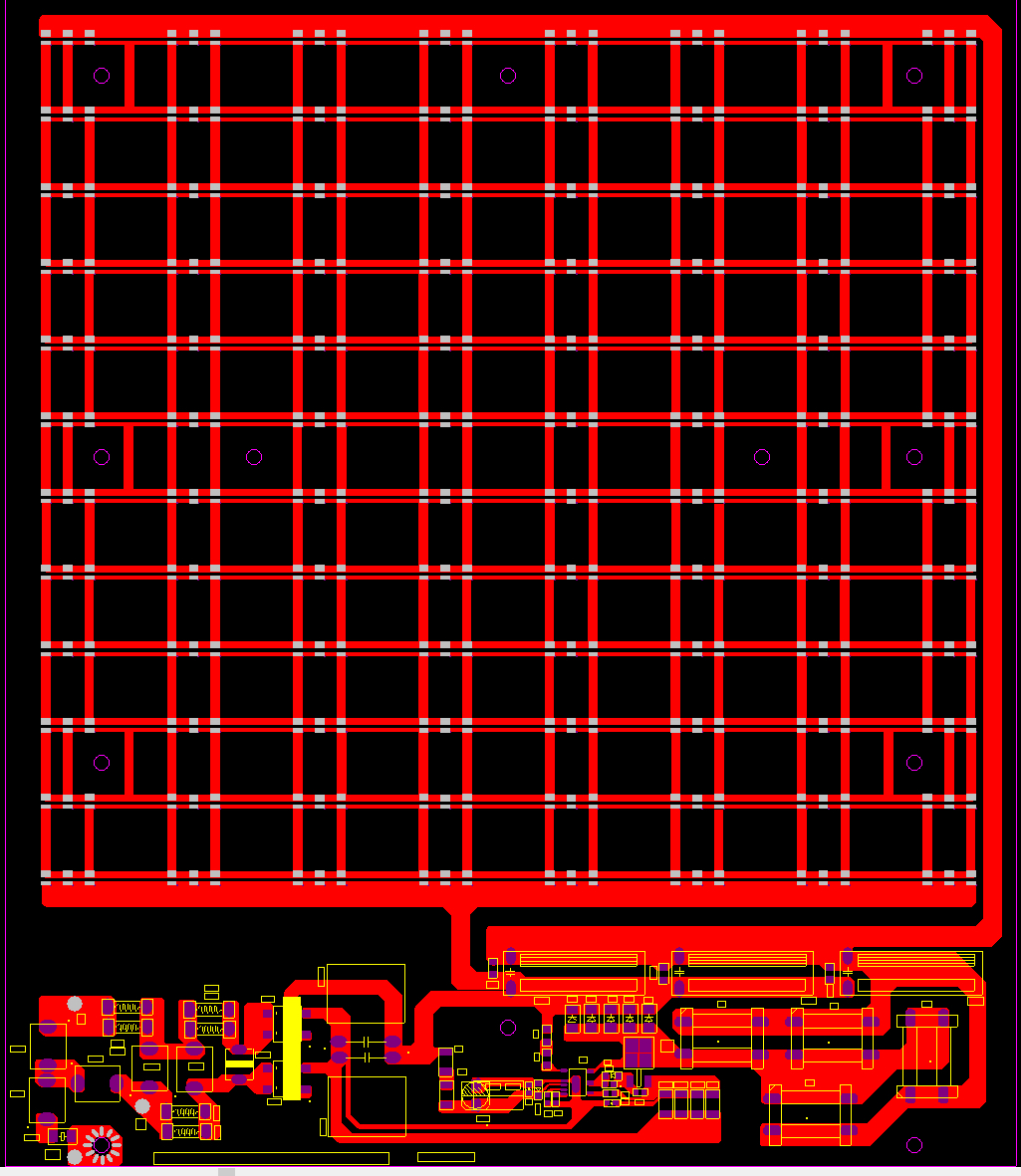

PCB Layout Design Spec
Maximum Layers: 20 High Speed and High Density PCB Design Blinded and Buried Vias Supported Minimum BGA pin-pith: 0.5mm High Speed Differential Signal:10 GHz Minimum Routing Width and Separation: 4mil Minimum Via Hole Size: 8mil (4mil Laser Drill)
PCB Design Experiences
Digital, Analog Circuit DDR/DDRII 800M/QDR/SRAM memory interface Switch Power Supply CI, CPCI, PCI-X, PCIE, SATA, SATA II, XAUI ATCA, AMC, Hyper Transport TI DLP-RAMBUS RDRAM
PCB Layout Design Quote Requirements
Schematic, PCB Board Size Housing samples Bill of Materials Expect Lead Time
We specialize in design solutions for indoor and outdoor lighting fixtures.
